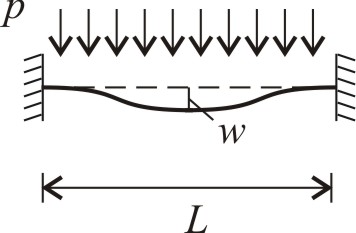

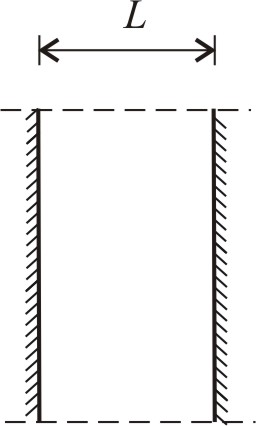

Problem 10.1. Deflection of a one-way plate

Constant load, p  [kN/m²]=

Midspan deflection, w(L/2)=

Check formula Hide formula

Moment, M_x(0)=

Check formula Hide formula

Moment, M_y(0)=

Check formula Hide formula

Problem a)

Boundary conditions are given in Table 10.2.

Step 1.  Check boundary conditions at built-in edge, x = 0.

Show boundary conditions Hide boundary conditions

Step 2.  Check boundary conditions at built-in edge, x = L.

Show boundary conditions Hide boundary conditions

Problem b)

Step 1.  Give the load function deriving the fourth derivative of the deflection.

Show load Hide load

Higher order derivatives of the deflection function are:

$$\begin{gathered} \frac{{\partial }^{2}w\left(x\right)}{\partial x^2}=24\frac{x^2}{24D}–12\frac{Lx}{12D}+4\frac{L^2}{24D} \\ \frac{{\partial }^{3}w\left(x\right)}{\partial x^3}=48\frac{x}{24D}–12\frac{L}{12D} \\ \frac{{\partial }^{4}w\left(x\right)}{\partial x^4}=\frac{48}{24D} \end{gathered}$$

The load function obtained from by the DE of the one-way slab is constant:

Eq.(10-29)

${\mathit{p}}_{\mathbf{z}}=D\frac{{\partial }^{4}w}{\partial x^4}=\frac{48}{24}\mathbf{=}\mathbf{2}$

When the unit of the length is [m] and the stiffness of the slab is given in [kNm²/m], then the load is in [kN/m²] while the deflection is in [m].

Problem c)

Step 1.  Calculate midspan deflection at x = L/2.

Show deflection Hide deflection

Problem d)

Step 1. Give the moments from the second derivatives of the deflection function.

Show moments Hide moments

See Table 10.1.

$$\begin{gathered} M_x=D{\kappa }_x+\nu D{\kappa }_y=–D\frac{{\partial }^{2}w}{\partial x^2}+\nu D\frac{{\partial }^{2}w}{\partial y^2}=–D\frac{{\partial }^{2}w}{\partial x^2}=–D\left(24\frac{x^2}{24D}–12\frac{Lx}{12D}+4\frac{L^2}{24D}\right) \\ \to {\mathit{M}}_{\mathbf{x}}\mathbf{\left(}\mathbf{0}\mathbf{\right)}=–D\left(24\frac{0^2}{24D}–12\frac{L\times 0}{12D}+4\frac{L^2}{24D}\right)=–\frac{L^2}{6}\mathbf{=}\mathbf{–}\frac{\mathit{p}{\mathit{L}}^{\mathbf{2}}}{\mathbf{12}} \\ {M}_y=\nu D{\kappa }_x+D{\kappa }_y=–D\nu \frac{{\partial }^{2}w}{\partial x^2}+\nu D\frac{{\partial }^{2}w}{\partial y^2}=–D\nu \frac{{\partial }^{2}w}{\partial x^2}=–\nu D\left(24\frac{x^2}{24D}–12\frac{Lx}{12D}+4\frac{L^2}{24D}\right) \\ \to {\mathit{M}}_{\mathit{y}}\mathbf{\left(}\mathbf{0}\mathbf{\right)}\mathbf{=}\mathbf{–}\mathit{\nu }\frac{\mathit{p}{\mathit{L}}^{\mathbf{2}}}{\mathbf{12}} \end{gathered}$$

Note that the derivatives of the deflection function with respect to to y is zero.

Problem a)

Boundary conditions are given in Table 10.2.

The deflection function fulfills the boundary conditions at x = 0:

$$\begin{gathered} w\left(x\right)=2\frac{x^4}{24D}–2\frac{L{x}^3}{12D}+2\frac{L^2{x}^2}{24D} \to w\left(0\right)=0 \\ \frac{\partial w\left(x\right)}{\partial x}=8\frac{x^3}{24D}–6\frac{L{x}^2}{12D}+4\frac{L^{2}x}{24D} \to {\overline{)\frac{\partial w}{\partial x}}}_{x=0}=0 \end{gathered}$$

The deflection function fulfills the boundary conditions at x = L:

$$\begin{gathered} w\left(x\right)=2\frac{x^4}{24D}–2\frac{L{x}^3}{12D}+2\frac{L^2{x}^2}{24D} \to w\left(L\right)=\frac{L^4}{24D}(2–4+2)=0 \\ \frac{\partial w\left(x\right)}{\partial x}=8\frac{x^3}{24D}–6\frac{L{x}^2}{12D}+4\frac{L^{2}x}{24D} \to {\overline{)\frac{\partial w}{\partial x}}}_{x=L}==\frac{L^3}{24D}(8–12+4)=0 \end{gathered}$$

Problem b)

Higher order derivatives of the deflection function are:

$$\begin{gathered} \frac{{\partial }^{2}w\left(x\right)}{\partial x^2}=24\frac{x^2}{24D}–12\frac{Lx}{12D}+4\frac{L^2}{24D} \\ \frac{{\partial }^{3}w\left(x\right)}{\partial x^3}=48\frac{x}{24D}–12\frac{L}{12D} \\ \frac{{\partial }^{4}w\left(x\right)}{\partial x^4}=\frac{48}{24D} \end{gathered}$$

The load function obtained from by the DE of the one-way slab is constant:

Eq.(10-29)

${\mathit{p}}_{\mathbf{z}}=D\frac{{\partial }^{4}w}{\partial x^4}=\frac{48}{24}\mathbf{=}\mathbf{2}$

When the unit of the length is [m] and the stiffness of the slab is given in [kNm²/m], then the load is in [kN/m²] while the deflection is in [m].

Problem c)

Midspan deflection at x = L/2 is

$$\begin{gathered} \mathit{w}\left(\frac{\mathit{L}}{\mathbf{2}}\right)=2\frac{{\left({\displaystyle \frac{L}{2}}\right)}^4}{24D}–2\frac{L{\left(\frac{L}{2}\right)}^3}{12D}+2\frac{L^2{\left(\frac{L}{2}\right)}^2}{24D}=2\frac{L^4}{2^4\times 24D}–2\frac{L^4}{2^3\times 12D}+2\frac{L^4}{4\times 24D}= \\ =\frac{2}{384}\frac{L^4}{D}\mathbf{=}\mathbf{ }\frac{\mathbf{1}}{\mathbf{384}}\frac{\mathit{p}{\mathit{L}}^{\mathbf{4}}}{\mathit{D}} \end{gathered}$$

Problem d)

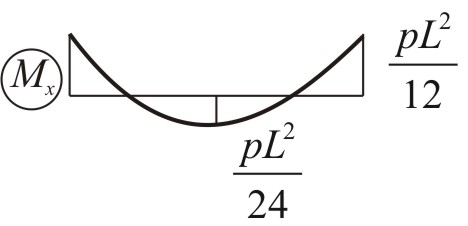

The moments are given by the second derivatives of the deflection function.

See Table 10.1.

$$\begin{gathered} M_x=D{\kappa }_x+\nu D{\kappa }_y=–D\frac{{\partial }^{2}w}{\partial x^2}+\nu D\frac{{\partial }^{2}w}{\partial y^2}=–D\frac{{\partial }^{2}w}{\partial x^2}=–D\left(24\frac{x^2}{24D}–12\frac{Lx}{12D}+4\frac{L^2}{24D}\right) \\ \to {\mathit{M}}_{\mathbf{x}}\mathbf{\left(}\mathbf{0}\mathbf{\right)}=–D\left(24\frac{0^2}{24D}–12\frac{L\times 0}{12D}+4\frac{L^2}{24D}\right)=–\frac{L^2}{6}\mathbf{=}\mathbf{–}\frac{\mathit{p}{\mathit{L}}^{\mathbf{2}}}{\mathbf{12}} \\ {M}_y=\nu D{\kappa }_x+D{\kappa }_y=–D\nu \frac{{\partial }^{2}w}{\partial x^2}+\nu D\frac{{\partial }^{2}w}{\partial y^2}=–D\nu \frac{{\partial }^{2}w}{\partial x^2}=–\nu D\left(24\frac{x^2}{24D}–12\frac{Lx}{12D}+4\frac{L^2}{24D}\right) \\ \to {\mathit{M}}_{\mathit{y}}\mathbf{\left(}\mathbf{0}\mathbf{\right)}\mathbf{=}\mathbf{–}\mathit{\nu }\frac{\mathit{p}{\mathit{L}}^{\mathbf{2}}}{\mathbf{12}} \end{gathered}$$

Note that the derivatives of the deflection function with respect to y is zero.
