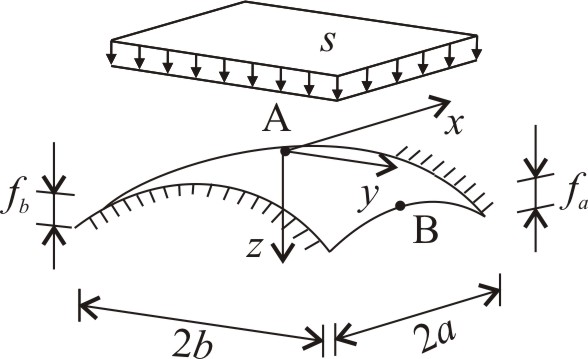

Problem 11.8. Elliptic paraboloid roof with two perfect supports

Normal force at point A, N_x [kN/m]=

Normal force at point A, N_y [kN/m]=

Shear force at point A, N_xy [kN/m]=

Normal force at point B, N_x [kN/m]=

Normal force at point B, N_y [kN/m]=

Shear force at point B, N_xy [kN/m]=

Step 1. Write the function of the elliptic paraboloid.

Check functionHide function

Eq(11-61)

$z=\frac{f_a}{a^2}{x}^2+\frac{f_b}{b^2}{y}^2$

Step 3. Give the partial derivatives of the surface function.

Check partial derivativesHide partial derivatives

Eq(11-62)

$$\begin{gathered} p=z_x=\frac{2f_a}{a^2}x=\frac{2\times 1.0}{10.0^2}x=0.02x, q=z_y=\frac{2f_b}{b^2}y=\frac{2\times 1.0}{10.0^2}x=0.02y \\ {z}_{xx}=\frac{2f_a}{a^2}=0.02, z_{yy}=\frac{2f_b}{b^2}=0.02, z_{xy}=0 \end{gathered}$$

Step 4. Determine the projected normal forces.

Check projected normal forcesHide projected normal forces

The shell structure carries the load as an arch along x axis.

Eq.(11-65)

$$\begin{gathered} {\overline{N}}_x=–\frac{a^2}{2f_a}s=–\frac{10.0^2}{2\times 1.0}1.5=–75.00 \frac{\mathrm{kN}}{\mathrm{m}} \\ {\overline{N}}_y=0 \\ {\overline{N}}_{xy}=0 \end{gathered}$$

Step 5. Calculate the membrane forces at the given points.

Check membrane forcesHide membrane forces

The membrane forces can be calculated from the projected forces as:

Eq(11-38)

$$\begin{gathered} N_x={\overline{N}}_x\frac{\sqrt{1+p^2}}{\sqrt{1+q^2}}=–75.00\frac{\sqrt{1+0.{02}^2{x}^2}}{\sqrt{1+0.{02}^2{y}^2}} \\ {N}_y={\overline{N}}_y\frac{\sqrt{1+q^2}}{\sqrt{1+p^2}}=0 \\ {N}_{xy}={\overline{N}}_{xy}=0 \end{gathered}$$

The values of the non zero normal force, N_x at points A and B are$$\begin{gathered} {\mathit{N}}_{\mathit{x}\mathbf{,}\mathbf{A}}\mathbf{(}\mathit{x}\mathbf{=}\mathbf{0}\mathbf{,}\mathbf{ }\mathit{y}\mathbf{=}\mathbf{0}\mathbf{)}=–75.00\frac{\sqrt{1+0.{02}^2\times 0^2}}{\sqrt{1+0.{02}^2\times 0^2}}\mathbf{=}\mathbf{–}\mathbf{75}\mathbf{.}\mathbf{00}\mathbf{ }\frac{\mathbf{kN}}{\mathbf{m}} \\ {\mathit{N}}_{\mathit{x}\mathbf{,}\mathit{B}}\mathbf{(}\mathit{x}\mathbf{=}\mathbf{0}\mathbf{,}\mathbf{ }\mathit{y}\mathbf{=}\mathit{b}\mathbf{)}=–75.00\frac{\sqrt{1+0.{02}^2\times 0^2}}{\sqrt{1+0.{02}^2\times 10.0^2}}\mathbf{=}\mathbf{–}\mathbf{73}\mathbf{.}\mathbf{54}\mathbf{ }\frac{\mathbf{kN}}{\mathbf{m}} \end{gathered}$$

Step 6. Draw the internal force diagrams.

Check internal force diagramsHide internal force diagrams

Step 7. Determine the loads on the supports, draw the free body diagram.

Check free body diagramHide free body diagram

First the function of the elliptic paraboloid is written.

Eq(11-61)

$z=\frac{f_a}{a^2}{x}^2+\frac{f_b}{b^2}{y}^2$

The partial derivatives of the surface function are:

Eq(11-62)

$$\begin{gathered} p=z_x=\frac{2f_a}{a^2}x=\frac{2\times 1.0}{10.0^2}x=0.02x, q=z_y=\frac{2f_b}{b^2}y=\frac{2\times 1.0}{10.0^2}x=0.02y \\ {z}_{xx}=\frac{2f_a}{a^2}=0.02, z_{yy}=\frac{2f_b}{b^2}=0.02, z_{xy}=0 \end{gathered}$$

The shell structure carries the load as an arch along x axis. The projected normal forces are:

Eq.(11-65)

$$\begin{gathered} {\overline{N}}_x=–\frac{a^2}{2f_a}s=–\frac{10.0^2}{2\times 1.0}1.5=–75.00 \frac{\mathrm{kN}}{\mathrm{m}} \\ {\overline{N}}_y=0 \\ {\overline{N}}_{xy}=0 \end{gathered}$$

The membrane forces can be calculated from the projected forces as:

Eq(11-38)

$$\begin{gathered} N_x={\overline{N}}_x\frac{\sqrt{1+p^2}}{\sqrt{1+q^2}}=–75.00\frac{\sqrt{1+0.{02}^2{x}^2}}{\sqrt{1+0.{02}^2{y}^2}} \\ {N}_y={\overline{N}}_y\frac{\sqrt{1+q^2}}{\sqrt{1+p^2}}=0 \\ {N}_{xy}={\overline{N}}_{xy}=0 \end{gathered}$$

The values of the non zero normal force, N_x at points A and B are$$\begin{gathered} {\mathit{N}}_{\mathit{x}\mathbf{,}\mathbf{A}}\mathbf{(}\mathit{x}\mathbf{=}\mathbf{0}\mathbf{,}\mathbf{ }\mathit{y}\mathbf{=}\mathbf{0}\mathbf{)}=–75.00\frac{\sqrt{1+0.{02}^2\times 0^2}}{\sqrt{1+0.{02}^2\times 0^2}}\mathbf{=}\mathbf{–}\mathbf{75}\mathbf{.}\mathbf{00}\mathbf{ }\frac{\mathbf{kN}}{\mathbf{m}} \\ {\mathit{N}}_{\mathit{x}\mathbf{,}\mathit{B}}\mathbf{(}\mathit{x}\mathbf{=}\mathbf{0}\mathbf{,}\mathbf{ }\mathit{y}\mathbf{=}\mathit{b}\mathbf{)}=–75.00\frac{\sqrt{1+0.{02}^2\times 0^2}}{\sqrt{1+0.{02}^2\times 10.0^2}}\mathbf{=}\mathbf{–}\mathbf{73}\mathbf{.}\mathbf{54}\mathbf{ }\frac{\mathbf{kN}}{\mathbf{m}} \end{gathered}$$

The internal force diagrams are shown in the Figure.

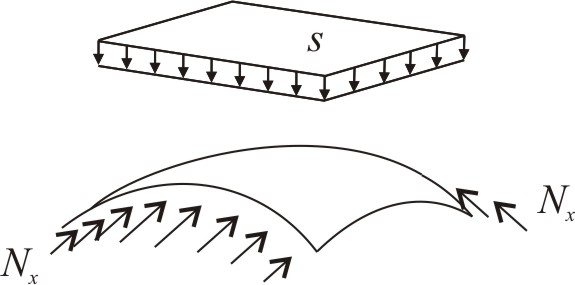

The free body diagram is given below. The perfect supports are subjected to tangential forces.
