Problem 10.7. Local buckling of a box beam

Buckling load of the cross section, P_cr[kN]=

Step 1.  Determine the buckling loads of the flange and the web assuming hinged supports

Show buckling loads with hinged supportsHide buckling loads with hinged supports

See Table 10.4 1^st row or Eqs.(10-79)-(10-80)

${\sigma }_{\mathrm{w},\mathrm{cr}}^{\mathrm{ss}}=\frac{N_{\mathrm{w},\mathrm{cr}}}{t}=\frac{1}{t}\frac{4D{\mathrm{\pi }}^2}{b_{\mathrm{w}}^2}=\frac{1}{5}\frac{4\times 2.4\times {10}^3{\mathrm{\pi }}^2}{{245}^2}=0.316\frac{ \mathrm{kN}}{{\mathrm{mm}}^2}$

${\sigma }_{\mathrm{f},\mathrm{cr}}^{\mathrm{ss}}=\frac{N_{\mathrm{f},\mathrm{cr}}}{t}=\frac{1}{t}\frac{4D{\mathrm{\pi }}^2}{b_{\mathrm{f}}^2}=\frac{1}{5}\frac{4\times 2.4\times {10}^3{\mathrm{\pi }}^2}{{145}^2}=0.901\frac{ \mathrm{kN}}{{\mathrm{mm}}^2}$

Web buckling is relevant.

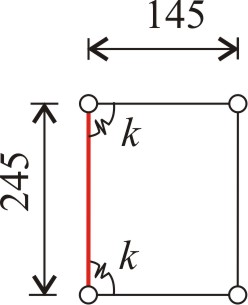

Step 2.  Determine the spring constant.

Show spring constantHide spring constant

Eqs.(10-82)-(10-83)

$$\begin{gathered} k=\frac{2D}{b_{\mathrm{f}}}\frac{1}{\psi }=\frac{2\times 2.4}{0.145}\frac{1}{0.650}=21.51 \mathrm{kN} \\ \mathrm{where} \\ \frac{1}{\psi }=1–\frac{{\sigma }_{\mathrm{w},\mathrm{cr}}^{\mathrm{ss}}}{{\sigma }_{\mathrm{f},\mathrm{cr}}^{\mathrm{ss}}}=1–\frac{0.316}{0.901}=0.650 \end{gathered}$$

Step 3.  Determine the buckling load of the rotationally restrained web.

Show buckling load of the webHide buckling load

See Table 10.4 4^th row or Eqs.(10-81)

$$\begin{gathered} N_{x,\mathrm{cr}}=\frac{{\mathrm{\pi }}^2}{{\left(b_w\right)}^2}\left[2\sqrt{1+4.139\xi }+2+0.44{\xi }^2\right]D= \\ =\frac{{\mathrm{\pi }}^2}{0.{245}^2}\left[2\sqrt{1+4.139\times 0.18}+2+0.44\times 0.{18}^2\right]\times 2.4=1837 \mathrm{kN}/\mathrm{m} \\ \mathrm{where} \\ \mathrm{\varsigma }=\frac{D}{k{b}_{\mathrm{w}}}=\frac{2.4}{21.51\times 0.245}=0.455 \mathrm{and} \xi =\frac{1}{1+10\varsigma }=0.18 \end{gathered}$$

Step 4.  Give the critical force of the total cross section.

Show critical loadHide critical load

First hinged connections are assumed. The buckling loads of the flange and the web are

See Table 10.4 1^st row or Eqs.(10-79)-(10-80)

${\sigma }_{\mathrm{w},\mathrm{cr}}^{\mathrm{ss}}=\frac{N_{\mathrm{w},\mathrm{cr}}}{t}=\frac{1}{t}\frac{4D{\mathrm{\pi }}^2}{b_{\mathrm{w}}^2}=\frac{1}{5}\frac{4\times 2.4\times {10}^3{\mathrm{\pi }}^2}{{245}^2}=0.316\frac{ \mathrm{kN}}{{\mathrm{mm}}^2}$

${\sigma }_{\mathrm{f},\mathrm{cr}}^{\mathrm{ss}}=\frac{N_{\mathrm{f},\mathrm{cr}}}{t}=\frac{1}{t}\frac{4D{\mathrm{\pi }}^2}{b_{\mathrm{f}}^2}=\frac{1}{5}\frac{4\times 2.4\times {10}^3{\mathrm{\pi }}^2}{{145}^2}=0.901\frac{ \mathrm{kN}}{{\mathrm{mm}}^2}$

Web buckling is relevant. Now we calculate the buckling load of the rotationally restrained web. The spring constant represents the restraining effect of flanges must be determined.

Eqs.(10-82)-(10-83)

$$\begin{gathered} k=\frac{2D}{b_{\mathrm{f}}}\frac{1}{\psi }=\frac{2\times 2.4}{0.145}\frac{1}{0.650}=21.51 \mathrm{kN} \\ \mathrm{where} \\ \frac{1}{\psi }=1–\frac{{\sigma }_{\mathrm{w},\mathrm{cr}}^{\mathrm{ss}}}{{\sigma }_{\mathrm{f},\mathrm{cr}}^{\mathrm{ss}}}=1–\frac{0.316}{0.901}=0.650 \end{gathered}$$

The buckling load of the rotationally restrained web is

See Table 10.4 4^th row or Eqs.(10-81)

The critical force of the total cross section results in:

${\mathit{P}}_{\mathbf{c}\mathbf{r}}=\frac{N_{x,\mathrm{cr}}}{t}A=\frac{1837.5}{5\times {10}^{–3}}\left(150\times 5\times 2+220\times 5\right)\times {10}^{–6}\mathbf{=}\mathbf{1433}\mathbf{ }\mathbf{kN}$
