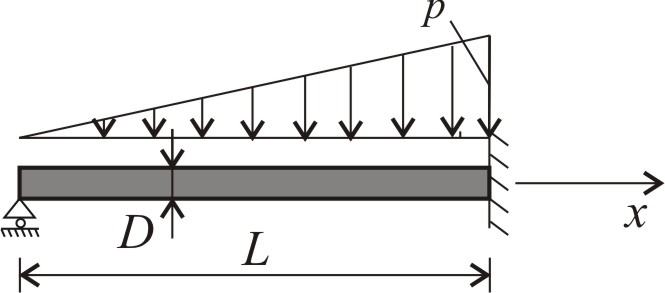

Problem 3.13. Timoshenko beam with different end supports

Check differential equation systemHide differential equation system

Check boundary conditionsHide boundary conditions

Step 1. Give the elements of the load vector (force and moment functions along the beam’s length).

Check load vectorHide load vector

Step 2. Determine the bending and shear stiffnesses of the solid circular cross section.

Check stiffnessesHide stiffnesses

Shear stiffness is given by Eqs.(3-59) and (3-60)

Shear correction factor is given in Figure 3.28.

$$\begin{gathered} E{I}_z=E\frac{D^4\pi }{4} \\ S=\frac{GA}{n}=G\frac{D^2\pi }{4}\frac{9}{10} \end{gathered}$$

Step 3. Write the differential equation system of the Timosenko beam.

Check differential equation systemHide differential equation system

Eq.(3-61)

$$\begin{gathered} \left[\begin{array}{cc}–S\frac{d^2}{d{x}^2}& S\frac{d}{dx}\\ –S& S–EI\frac{d^2}{d{x}^2}\end{array}\right]\left\{\begin{array}{c}v\\ {\chi }_y\end{array}\right\}=\left\{\begin{array}{c}{p}_y\\ m\end{array}\right\} \\ \left[\begin{array}{cc}–G\frac{9D\pi ^2}{40}\frac{d^2}{d{x}^2}& G\frac{9D\pi ^2}{40}\frac{d}{dx}\\ –G\frac{9D\pi ^2}{40}\frac{d}{dx}& G\frac{9D\pi ^2}{40}–E\frac{D^4\pi }{4}\frac{d^2}{d{x}^2}\end{array}\right]\left\{\begin{array}{c}v\\ {\chi }_y\end{array}\right\}=\left\{\begin{array}{c}\frac{px}{L}\\ 0\end{array}\right\} \end{gathered}$$

Step 4. Show the boundary conditions for built-in and hinged edges.

Check boundary conditionsHide boundary conditions

Step 5. Differential equation system with the given boundary conditions can be solved. Solution is not presented here.

First the load vector is given. Its elements are the force and moment functions along the beam’s length. Here no moment load acts, the linearly distributed load results in the following load vector:

$\left\{\begin{array}{c}{p}_y\\ m\end{array}\right\}=\left\{\begin{array}{c}\frac{px}{L}\\ 0\end{array}\right\}$

The bending and shear stiffnesses of the solid circular cross section are given below.

Shear stiffness is given by Eqs.(3-59) and (3-60)

Shear correction factor is given in Figure 3.28.

The differential equation system of the Timosenko beam is:

Eq.(3-61)

Finally the boundary conditions for built-in and hinged edges are shown.

At the hinged end of the beam:

$$\begin{gathered} v\left(0\right)=0, \\ M\left(0\right)=0 \to M=EI{\kappa }_z=–EI\frac{d{\chi }_y}{dx} \to \frac{d{\chi }_y\left(0\right)}{dx}=0 \end{gathered}$$

At the built-in end of the beam:

$v\left(L\right)=0, {\chi }_y\left(L\right)=0$

The differential equation system with the given boundary conditions can be solved. Solution is not presented here.
