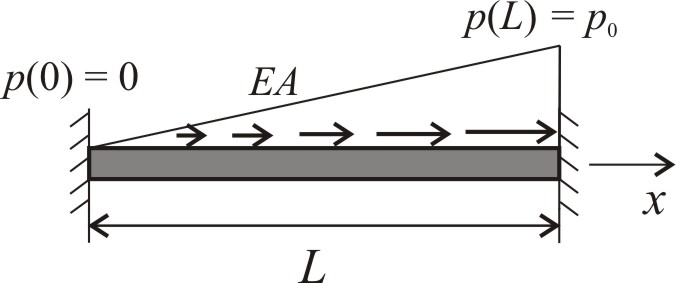

Problem 3.4. Linearly distributed tensile load

Derive the displacement function parametrically.

Check expression

Step 1. Give the load function and the differential equation of the tensile rod.

Check differential equationHide differential equation

See Eq.(3-26)



$$\begin{gathered} –\stackrel{}{EA}\frac{{\mathrm{d}}^2{u}^{}}{\mathrm{d}{x}^2}=p_x, \\ \mathrm{where} \\ {p}_x=p_0\frac{x}{L} \end{gathered}$$

Step 2. Write the solution of the homogeneous equation.

Check homogeneous solutionHide homogeneous solution

Step 3. Find a particular solution.

Check particular solutionHide particular solution

Step 4. Write the general solution and determine its constants from the boundary conditions.

Check constantsHide constants

The differential equation of the rod subjected to linearly varying tensile load is

See Eq.(3-26)

The solution of the homogeneous equation is

$u_{\mathrm{hom}}=C_1+C_{2}x$

The following particular solution satisfies the inhomogeneous equation

$u_{\mathrm{part}}=–\frac{p_0}{EAL}\frac{x^3}{6}$

$–\stackrel{}{EA}\frac{d^2{u}_{\mathrm{part}}}{d{x}^2}=–\stackrel{}{EA}\frac{d^2\left(–{\displaystyle \frac{p_0}{EAL}}{\displaystyle \frac{x^3}{6}}\right)}{d{x}^2}=–\stackrel{}{EA}\left(–\frac{p_0}{EAL}x\right)=p_0\frac{x}{L}$

The constants of the general solution are determined from the boundary conditions.

$u=u_{\mathrm{hom}}+ u_{\mathrm{part}}=C_1+C_{2}x–\frac{{\rho }_0}{EAL}\frac{x^3}{6}$

At both supports the displacement is zero.

$$\begin{gathered} \mathrm{at} x=0 u=0 \to C_1=0 \\ \mathrm{at} x=L u=0 \\ u\left(L\right)=C_{2}L–\frac{{\rho }_0}{EAL}\frac{L^3}{6}=0 \to C_2=\frac{{\rho }_{0}L}{6EA} \end{gathered}$$

The solution of the differential equation, i.e. the displacement function is

$\mathit{u}\mathit{=}\frac{{\mathit{p}}_{\mathbf{0}}}{\mathbf{6}\mathit{E}\mathit{A}\mathit{L}}\left(\mathit{x}{\mathit{L}}^{\mathbf{2}}\mathbf{–}{\mathit{x}}^{\mathit{3}}\right)$

$\epsilon =\frac{p_0}{6EAL}\left(L^2–3x^2\right)$
