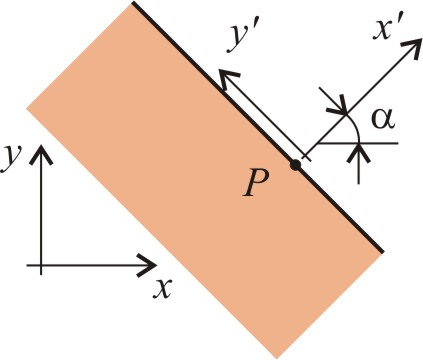

Problem 2.2. Stresses on plate edge

Stress, ${\sigma }_x$ [MPa]=

Stress, ${\sigma }_y$[MPa]=

Stress, $\sigma {‘}_y$[MPa]=

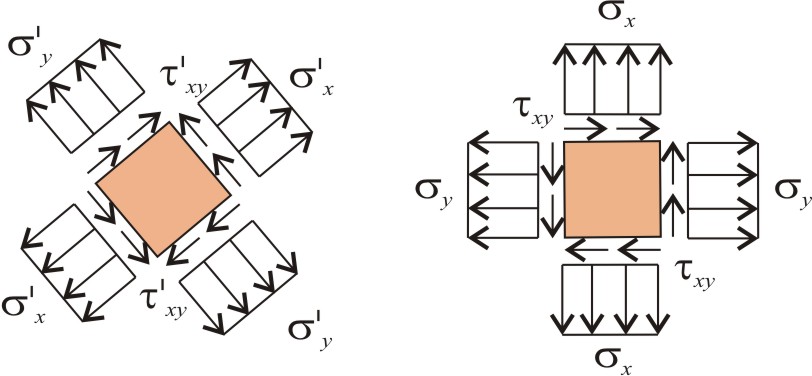

Step 1. Write stress vectors in both x-y and x’-y’ coordinate systems. Find the unknowns.

Check unknownsHide unknowns

Step 2. Rotation of the coordinate system requires the transformation of the stresses. Given and unknown stresses are related to each other through the transformation matrix. Determine transformation matrix.

Check transformation matrixHide transformation matrix

${\mathbf{T}}_{\mathbf{\sigma }}=\left[\begin{array}{ccc}{\cos }^{2}45°& {\sin }^{2}45°& 2\sin 45°\cos 45°\\ {\sin }^{2}45°& {\cos }^{2}45°& –2\sin 45°\cos 45°\\ –\sin 45°\cos 45°& \sin 45°\cos 45°& {\cos }^{2}45°–{\sin }^{2}45°\end{array}\right]=\left[\begin{array}{ccc}\frac{1}{2}& \frac{1}{2}& 1\\ \frac{1}{2}& \frac{1}{2}& –1\\ –\frac{1}{2}& \frac{1}{2}& 0\end{array}\right]$

Eq.(2-9)

Step 3. Write the transformation parametrically and express the unknown stresses from the equation system of the transformation.

Check resultsHide results

Transformation of stress vector from x-y to x’-y’ coordinate system is given by the following equation

Eq.(2-9)

$\left\{\begin{array}{c}\sigma {‘}_x\\ \mathrm{\sigma }{‘}_{\mathrm{y}}\\ \tau {‘}_{xy}\end{array}\right\}\mathbf{=}{\mathbf{T}}_{\sigma }\left\{\begin{array}{c}{\mathrm{\sigma }}_{\mathrm{x}}\\ {\mathrm{\sigma }}_{\mathrm{y}}\\ {\mathrm{\tau }}_{\mathrm{xy}}\end{array}\right\}$

where the transformation matrix is

${\mathbf{T}}_{\sigma }=\left[\begin{array}{ccc}{\cos }^{2}45°& {\sin }^{2}45°& 2\sin 45°\cos 45°\\ {\sin }^{2}45°& {\cos }^{2}45°& –2\sin 45°\cos 45°\\ –\sin 45°\cos 45°& \sin 45°\cos 45°& {\cos }^{2}45°–{\sin }^{2}45°\end{array}\right]=\left[\begin{array}{ccc}\frac{1}{2}& \frac{1}{2}& 1\\ \frac{1}{2}& \frac{1}{2}& –1\\ –\frac{1}{2}& \frac{1}{2}& 0\end{array}\right]$

Stresses $\sigma {‘}_x$  and $\tau {‘}_{xy}$ are zero, because there is no surface load to equilibrate them, and ${\tau }_{xy}$ is given in the inital data. In the equation system three unknowns remain (signed red)

$\mathbf{\sigma }\mathbf{‘}\mathbf{=}\left\{\begin{array}{c}0\\ \mathrm{\sigma }{‘}_{\mathrm{y}}\\ 0\end{array}\right\}\mathbf{=}{\mathbf{T}}_{\sigma }\mathit{\sigma }=\left[\begin{array}{ccc}\frac{1}{2}& \frac{1}{2}& 1\\ \frac{1}{2}& \frac{1}{2}& –1\\ –\frac{1}{2}& \frac{1}{2}& 0\end{array}\right]\left\{\begin{array}{c}{\sigma }_x\\ {\sigma }_y\\ 25\end{array}\right\}$

Expressing the unknown stresses from the equation system of the transformation the following results are obtained$$\begin{gathered} \frac{{\sigma }_x}{2}+\frac{{\displaystyle {\sigma }_y}}{{\displaystyle 2}}+25=0 \\ \frac{{\displaystyle {\sigma }_x}}{{\displaystyle 2}}+\frac{{\displaystyle {\sigma }_y}}{{\displaystyle 2}}–25=\sigma {‘}_y \to {\mathit{\sigma }}_{\mathbf{x}}\mathbf{=}{\mathit{\sigma }}_{\mathbf{y}}\mathbf{=}\mathbf{–}\mathbf{25}\mathbf{ }\mathbf{MPa}\mathbf{,}\mathbf{ }\mathit{\sigma }{\mathbf{‘}}_{\mathbf{y}}\mathbf{=}\mathbf{–}\mathbf{50}\mathbf{ }\mathbf{MPa} \\ –\frac{{\displaystyle {\sigma }_x}}{{\displaystyle 2}}+\frac{{\displaystyle {\sigma }_y}}{{\displaystyle 2}}=0 \end{gathered}$$
