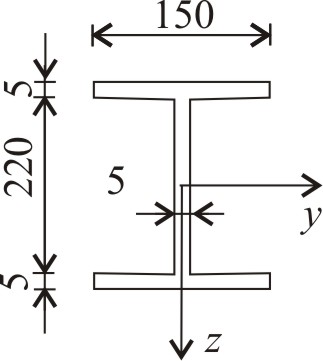

Problem 10.6. Local buckling with elastically restrained edge

Buckling load of the cross section, P_cr[kN]=

See 10^th row of Table 10.4.

Step 1.  Determine the spring constant.

Show spring constantHide spring constant

Eqs.(10-77)-(10-78)

$$\begin{gathered} k=\frac{1}{2}\frac{2D}{b_{\mathrm{w}}}\frac{1}{\psi }=\frac{2.4}{0.225}\frac{1}{0.0425}=0.453 \mathrm{kN} \\ \mathrm{where} \\ \frac{1}{\psi }=1–\frac{{\sigma }_{\mathrm{f},\mathrm{cr}}^{\mathrm{ss}}}{{\sigma }_{\mathrm{w},\mathrm{cr}}^{\mathrm{ss}}}=1–\frac{1792}{1871.6}=0.0425 \end{gathered}$$

Step 2.  Determine the buckling load of the rotationally restrained flange.

Show buckling load of the flangeHide buckling load

Step 3.  Give the critical force of the total cross section for local flange buckling.

Show critical loadHide critical load

See 10^th row of Table 10.4.

First the spring constant is determined.

Eqs.(10-77)-(10-78)

$$\begin{gathered} k=\frac{1}{2}\frac{2D}{b_{\mathrm{w}}}\frac{1}{\psi }=\frac{2.4}{0.225}\frac{1}{0.0425}=0.453 \mathrm{kN} \\ \mathrm{where} \\ \frac{1}{\psi }=1–\frac{{\sigma }_{\mathrm{f},\mathrm{cr}}^{\mathrm{ss}}}{{\sigma }_{\mathrm{w},\mathrm{cr}}^{\mathrm{ss}}}=1–\frac{1792}{1871.6}=0.0425 \end{gathered}$$

The buckling load of the rotationally restrained flange is
$$\begin{gathered} N_{x,\mathrm{cr}}=\frac{D}{{\left(b_f/2\right)}^2}\left[\frac{7}{\sqrt{1+4.12\varsigma }}+6(1–\nu )\right]=\frac{2.4}{0.{075}^2}\left[\frac{7}{\sqrt{1+4.12\times 70.56}}+6(1–0.3)\right]=1967 \mathrm{kN}/\mathrm{m} \\ \mathrm{where} \\ \mathrm{\varsigma }=\frac{D}{k(b_f/2)}=\frac{2.4}{0.453\times 0.075}=70.56 \end{gathered}$$

Finally the critical load, P acting on the cross section which causes the buckling of the flange is given.

${\mathit{P}}_{\mathbf{c}\mathbf{r}}=\frac{N_{x,\mathrm{cr}}}{t}A=\frac{1966.9\times {10}^{–3}}{5}\left(150\times 5\times 2+220\times 5\right)\mathbf{=}\mathbf{1023}\mathbf{ }\mathbf{kN}$
